A solar mounting system for every challenge
South-facing
East-west-orientation
Simplicity

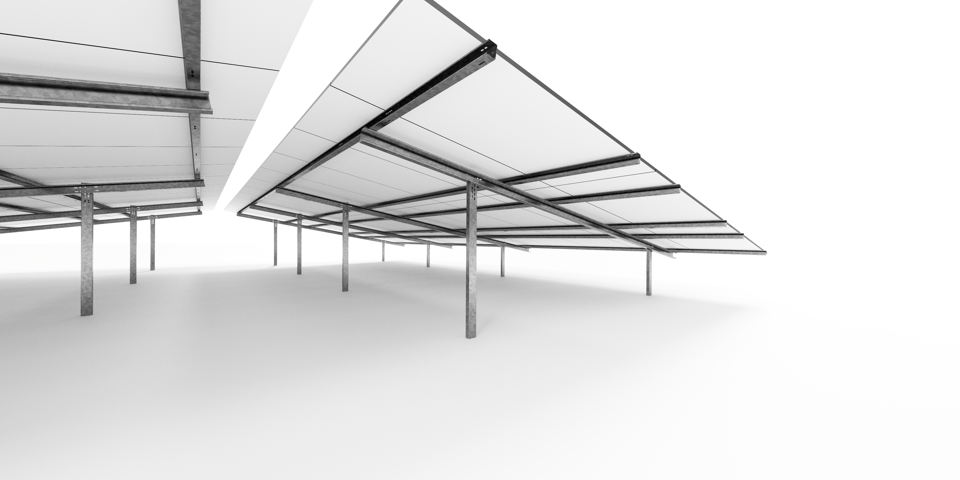

The HelioRack 3V impresses with its straightforward components. With only two types of screws, quick installation is guaranteed, making it ideal for beginners. This simplicity not only saves time but also reduces installation costs.
Individuality
The system adapts to every wind and snow load zone, as well as varying soil conditions. It is designed to meet your specific needs precisely.
Foundation
Thanks to driveable profiles, no additional concrete is required. Additionally, we offer other options such as root systems and earth screws to meet the individual requirements of your project. This means less effort and lower costs for the foundation of your solar installation.
Service package
Our extensive service package ensures a smooth installation process. We handle soil investigations, create driving plans, manage project planning, and conduct structural calculations. With Saferoad Solar Solutions by your side, you can be confident that your solar project will be executed efficiently and successfully.
Product details
|
|
|
|
| South-facing | East-West | |
| Angle of inclination | 10-30° Degree | 10-20° Degree |
| Module type | All types on request | |
| Modular assembly standard | Direct screw connection, clamps possible | |
| Table length | 30-35 m, more on request | |
| Terrain length | N-S: 20°, E-W: up to 20°, other angles on request | |
| Foundation |
Ramming post, concrete, ground screw, Root systems for very soft soils
|
Ramming post, concrete, ground screw, Root systems for very soft soils
|
| Materials | Superstructure: S550 with ZM310 Ramming posts: S350GD with ZM430 to ZM1200 |
|
| Guarantee | 10 years, further terms on request | |
| Bolt material | Modules: A2-A4 Structure: 8.8 HDG tightenable with impact wrench wrench |
|
We accompany you from the initial planning to the final installationIndividual
 |
Individual project planning Tailor-made solutions for everyterrain and every need.
|
 |
Static calculations Safe and compliant with standards - for all weather conditions.
|
 |
Professional soil analysis For the right foundation and maximum stability.
|
 |
Long-term support Technical service - even after installation.
|
Comprehensive services for your solar project
From initial planning to final installation, we support you in every step to ensure that your project is implemented optimally.
